BLUE SEA SYSTEMS 5056 ST-Blade Fuse Block, Water Resistant, 4 Circuits, 80A, 32VDC
$37.00
Buy and save
Buy and earn $0.74 Loyalty for your next purchase
Loyalty is a discount program that lets you buy products and earn points to redeem on your next purchase. Your Loyalty balance is updated when you pay online or in-store. The Loyalty amount shown on this page can be recalculated at the checkout.
Product Details
Brand: BLUE SEA
Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.
Packaged for retail use only. For bulk product, see item 78165B (must be logged in to purchase bulk)

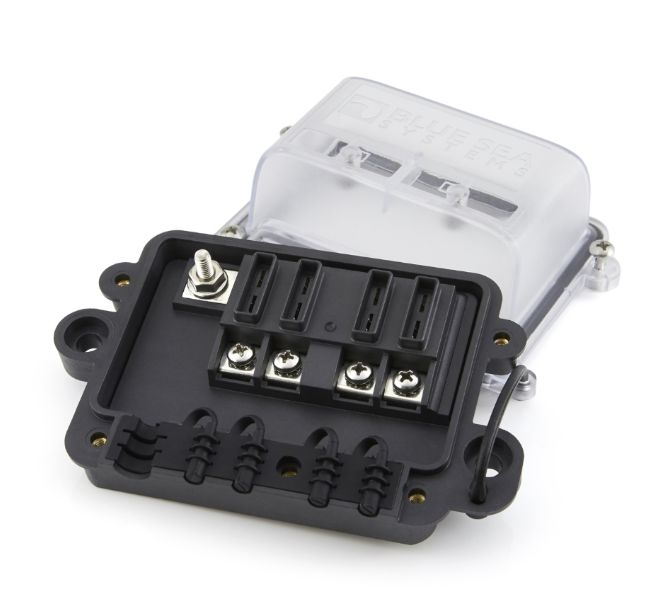

- Blue Sea Systems 5056 ST-Blade Fuse Block
- Category: Fuse Blocks
- Manufacturer: Blue Sea Systems
- Four circuits with cover
- Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes three wire plugs to maintain water resistant rating if less than four loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-style low profile circuit breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
- Maximum Amperage: 80A per block, 25A per circuit
- 32VDC Fuses sold separately
- #8-32 Screws with captive star lock washer
