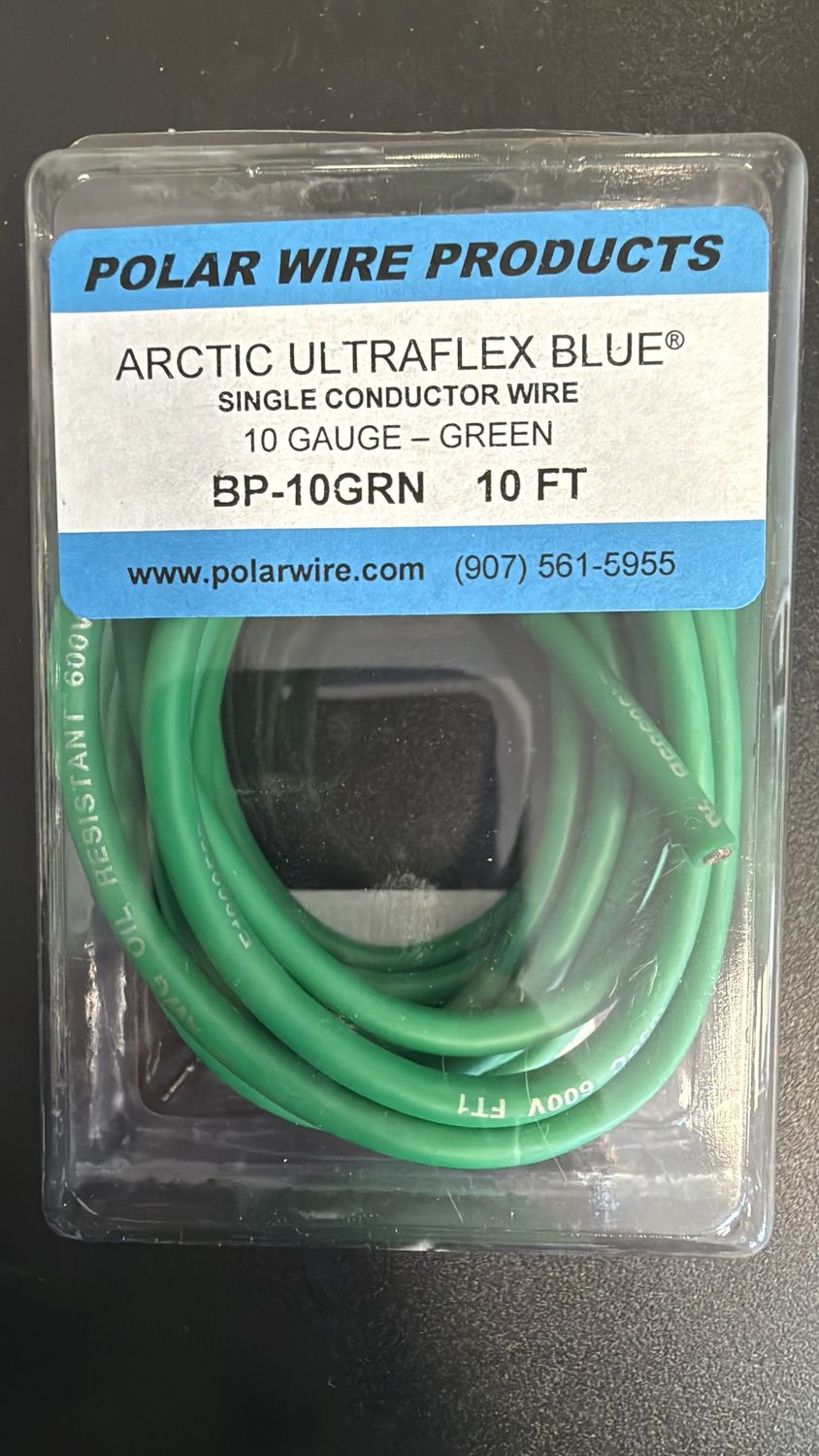

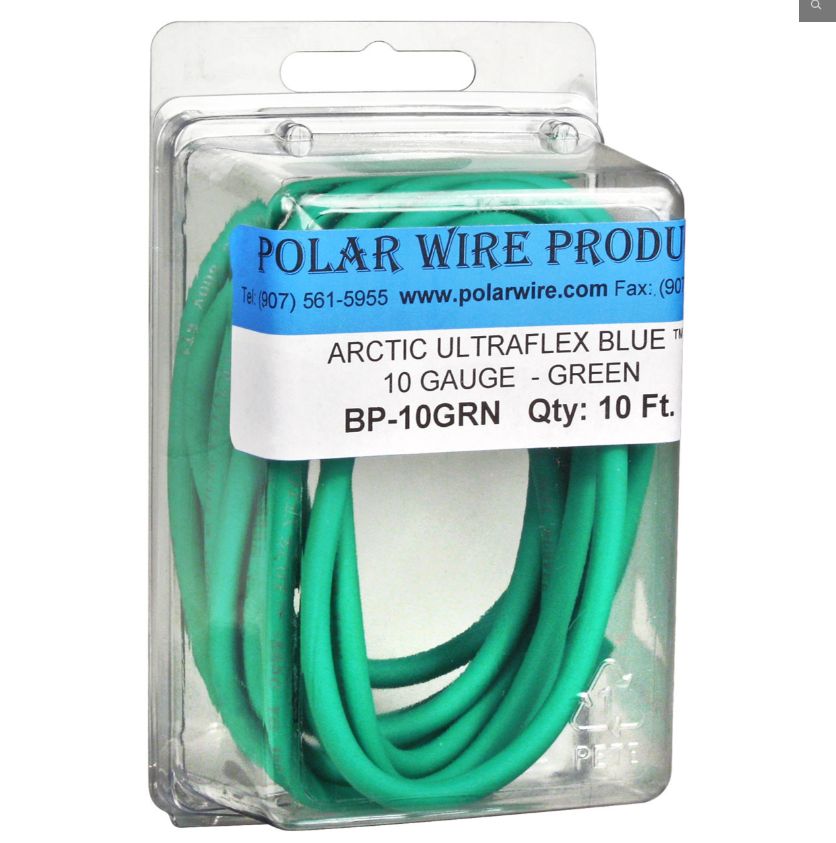

AWM 10 AWG OIL RESISTANT 600V VW-1 ARCTIC ULTRAFLEX BLUE® -55°C TO 105°C CSA 234608 TEW 105°C 600V FT1Construction Specifications:
- 10 AWG
- Class K Tinned Copper Stranding (105/30)
- .120" Conductor Outside Diameter
- .030" Insulation Thickness
- .180" Finished Outside Diameter
- Ampacity at 30°C (86°F)*: 60
- Ampacity at 40°C (104°F)*: 56
*Ampacities of 600V and 1000V 105°C AWM wires in air. Ampacities based on single conductor in free air, 30°C or 40°C ambient temperature as specified, 105°C conductor temperature, per NEC table 310-17 (adjusted for 105°C). Free air ratings assume a one-cable-diameter space between adjacent conductors.
